產品特點 Product feature
01、控制時間精度0.01秒
02、采用高強度滑軌連接設計，確保焊接強度，下壓回升機械高強度和高精密度
03、集成多種焊接控制技術
04、底模水平調節（選配：XY焊接平臺）
05、符合歐洲CE安全規范之操作模式
技術規格 TECHNICAL SPECIFICATIONS

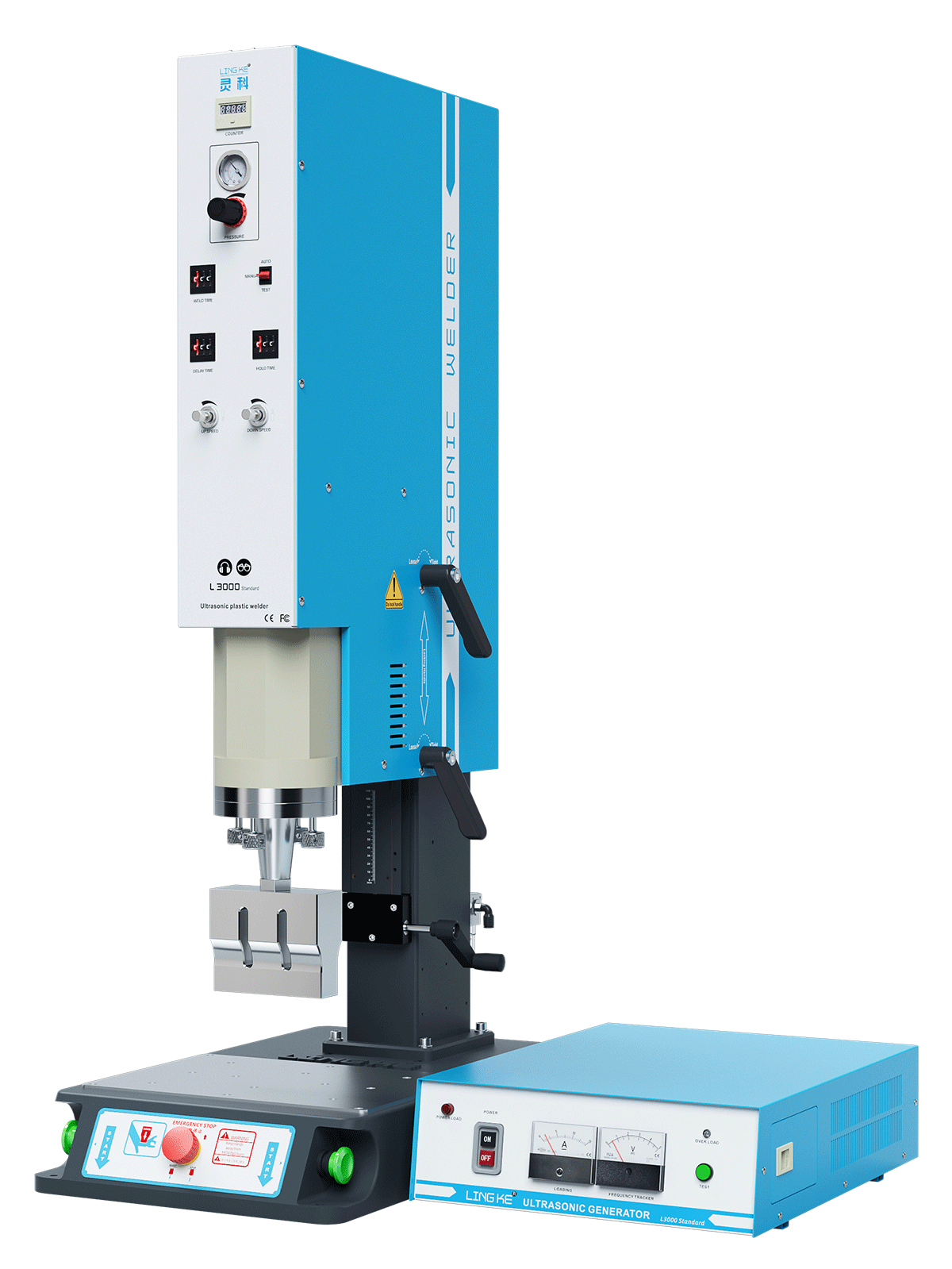

| 機型Model | L3000 Standard(數字化/模擬可選) | |||||||
| 頻率Frequency | 20kHz | 15kHz | ||||||
| 功率Power | 2000W | 2600W | 3200W模擬機 | 2600W落地型 | 2600W | 3200W | 3200W落地型 | |
| 輸入電壓InputVoltage | AC220V | AC220V | AC220V | AC220V | AC220V | AC220V | AC220V | |
| 氣缸規格Cylinder Size(mm) | 50×75/63×75 | 63×75 | 80×75 | 63×75 | 63×75 | 80×75 | 80×75 | |
| 機身行程Machine Journey | 100-575mm | 97-572mm | 97-572mm | 97-572mm | 80-527mm | 80-537mm | 80-537mm | |
| 輸出時間Output Time | 0.01-9.99s | 0.01-9.99s | 0.01-9.99s | 0.01-9.99s | 0.01-9.99s | 0.01-9.99s | 0.01-9.99s | |
| 輸入氣壓Air Pressure | >1,≤7bar | >1,≤7bar | >1,≤7bar | >1,≤7bar | >1,≤7bar | >1,≤7bar | >1,≤7bar | |
| 焊接面積Welding Capability | φ170mm | φ220mm | φ300mm | φ220mm | φ220mm | φ300mm | φ300mm | |
| 操作開關Operation Switch | 雙手啟動，前部有緊急制動，也可附加外部開關 Two-hand release,emergency stop buttonat thefront,and adding external control switch supported. | |||||||
| 外形尺寸Size(mm) 長(L)×寬×高(H) | 壓機Press | 680×400×1636 | 680×400×1636 | 680×400×1636 | 935×650×2130 | 680×400×1636 | 680×400×1636 | 935×650×2130 |
| 電箱(數字化機型) Generator(Digital Type) | 425×325×118 | 425×325×118 | / | 425×325×118 | 425×325×118 | 425×325×118 | 425×325×118 | |
| 電箱(模擬機型) Generator(Analog Type) | 530×405×155 | 530×405×155 | 530×405×155 | 530×405×155 | 530×405×155 | 530×405×155 | 530×405×155 | |
| 凈重Weight | 壓機Press | 74.5kg | 74.5kg | 74.5kg | 201kg | 74.5kg | 76.5kg | 201kg |
| 電箱(數字化機型) Generator(Digital Type) | 11kg | 11kg | / | 11kg | 11kg | 11kg | 11kg | |
| 電箱(模擬機型) Generator(Analog Type) | 14.5kg | 14.5kg | 14.5kg | 14.5kg | 14.5kg | 14.5kg | 14.5kg | |
| 增高柱(可選配)Heightened Pillar Optional | 增高柱規格(H):150mm/200mm/300mm(高度可選) | |||||||
